LOW PRESSURE RANGE
-
Three Piece Compact and Rugged Construction
-
Full and Reduced Bore Options
-
Four Unique Design Variants to suit all OEM requirements
-
Lowest Operating Torque for Easy Operation and Extended Service Life
Design Series

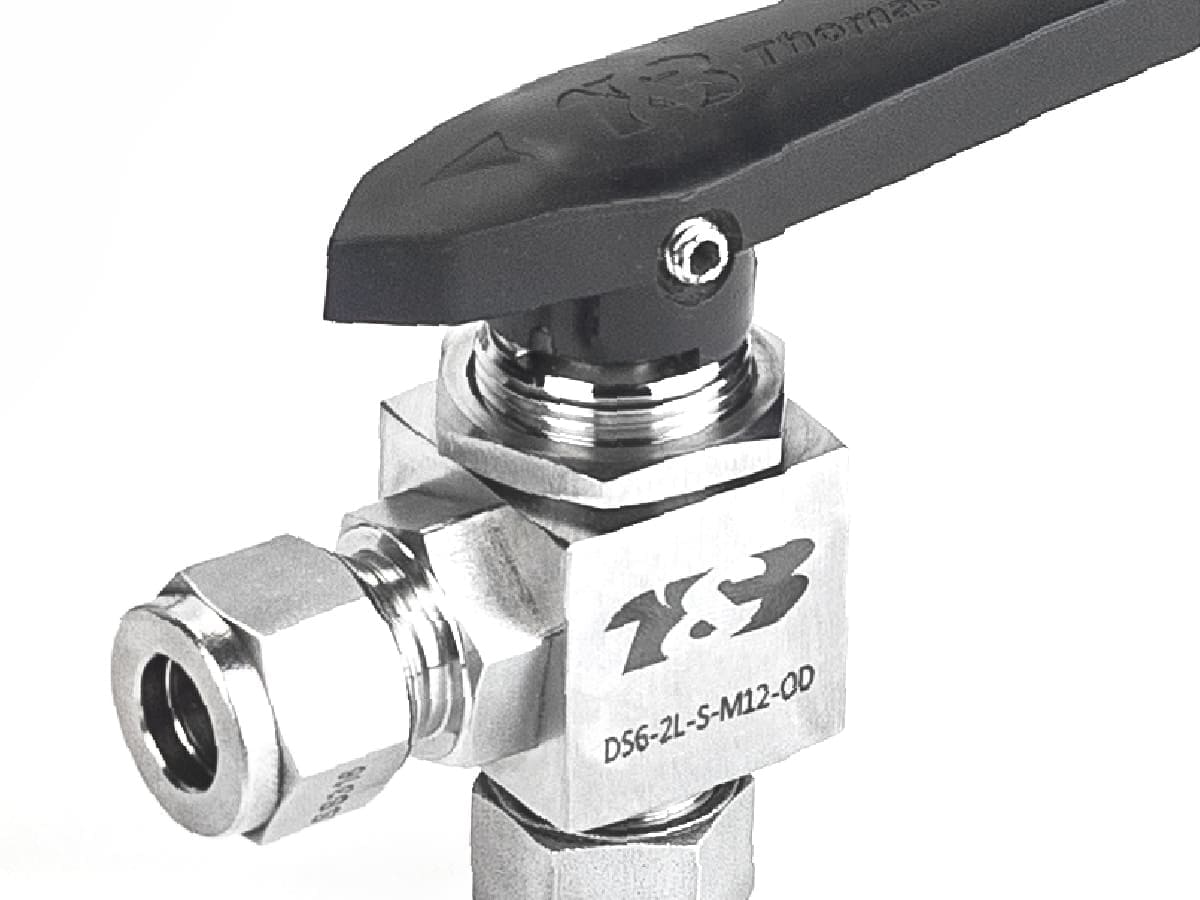

- DS6 Series – Direct Seat
- CS6 Series – Spring Loaded Carried Seat
- LH6 Series – Lever Handle Series
- HB6 Series –Hex Body Series
End Connections
- NPT, BSPT, BSPP, Metric Thread, Welded Ends.
Size range
- 1/8” to 2” Full & Reduce Bore options
Operating Pressure
- Pressure Ranging from 1500psig to 6000 psig
Materials of Construction
- Stainless Steel and Brass Standard
- Special Alloy Construction on request
Seat Materials
- PTFE, RPTFE, PEEK as Standard
- Application based Advanced Engineering Plastics Seat Materials on request
Seal Materials
- PTFE as standard
- Application based Advanced Engineering Plastics Seat Materials on request.
NACE Compliance
- Sour Gas Service Compliant as per NACE MR-01-75 (on request)
Actuation Options
- Pneumatic and Electric Actuation
Special Applications
- CNG and H2 compatible vetted parts as added option.
Relevant Design Standards
- Threads – ANSI B1.20.1
- Pressure Test – API 598
-
OIL & Gas
-
Water & Waste Water
-
Food & Beverage
-
Chemical & Petrochemical
Note: – As a drive for continuous improvements of our products, Powerlok reserves the right to change the descriptions contained in this brochure without prior notice. Consult local Agent or Factory for revisions and/or service related issues.
